How to Connect a Humidifier to Oxygen Concentrator?

Attaching Humidifier to Oxygen Concentrator

Using supplemental oxygen can sometimes lead to dryness in the nose, throat, and airways, which may cause discomfort over time.

That’s where a humidifier bottle comes in!

Setting up a humidifier with an oxygen concentrator machine adds moisture to the O₂, making it gentler and easier to breathe.

If you’ve been prescribed oxygen therapy, learning how to connect a humidifier to your oxygen concentrator is simple but important for your comfort and health.

In this guide, we’ll walk you through the steps to safely attach a humidifier bottle to your concentrator and ensure it works effectively.

Humidifier with Oxygen – How Does it Work ?

Unlike oxygen concentrators, which actually generate concentrated oxygen, a humidifier does not increase oxygen levels.

But it plays an important role in making oxygen therapy more comfortable. When you use an oxygen concentrator (especially at higher flow rates), it can dry out your nose, throat, and airways.

To prevent this, many stationary concentrators and some larger portable units allow you to attach a humidifier bottle.

Here’s how it works: the concentrator pulls in air from the surrounding environment, filters out other gases, and delivers concentrated oxygen.

This oxygen then passes through the humidifier bottle, where it bubbles through water before reaching you. The process adds moisture, reducing dryness and irritation, but it does not change the oxygen concentration.

For best results, always fill the humidifier with distilled water only and clean it daily to prevent bacterial growth.

You should never use tap water in the humidifier bottle, as it may contain microorganisms or pathogens. These can travel through the nasal passages and reach the lungs, increasing the risk of infection.

attach humidifier to oxygen machine

How to Use a Humidifier with an Oxygen Concentrator?

Using a humidifier bottle with your oxygen concentrator helps keep the oxygen moist and more comfortable to breathe. Here’s how to set it up safely:

  1. Fill with distilled water up to the marked fill line. Never overfill.
  2. Secure the cap tightly without cross-threading to prevent leaks.
  3. Attach the bottle to the concentrator using the provided Velcro strap or shelf.
  4. Connect the tubing: One end of the adapter tubing goes into the top of the humidifier cap. The other end attaches to the concentrator’s oxygen outlet.
  5. Attach your nasal cannula to the humidifier outlet port.
  6. Turn on the concentrator and check for bubbles inside the bottle. This confirms oxygen is flowing correctly.

Changing water and cleaning

When using a disposable humidifier bottle, remember to change the water every single day; don’t just top it up.

Be sure you fill above the minimum line and just beneath the maximum line on the bottle. Any excess water could result in water droplets moving with the oxygen to the nasal passage.

Regular cleaning is just as important for safe use. Sanitize the humidifier bottle at least once a week to prevent bacterial buildup. Remember, these bottles are not dishwasher safe, so always clean them by hand.

Troubleshooting leaks or alarms

If you notice bubbles forming outside the humidifier bottle, it usually means there is a loose connection or the cap has been cross-threaded.

In some cases, your humidifier may also have built-in pressure sensors that trigger an alarm. If that happens, switch off the concentrator, check the tubing for kinks or blockages, and then restart the unit once everything is secure.

How to Clean and Maintain an Oxygen Humidifier Bottle?

Now that you are aware of how to connect a humidifier bottle to an oxygen concentrator, it’s essential to know how you should clean it properly.

For cleaning and sanitizing your machine, you can follow the steps below…

Disinfecting and Cleaning the Exterior

The outer cover of the portable concentrator machine needs to be cleaned once a week and between patient uses.

Before you clean, turn the machine off and completely disconnect it from the power source.

Then, use a damp cloth with a household cleaner or mild soap to clean it. Finally, wipe it dry.

Disinfecting the Humidifier Bottle

The humidifier bottle should be disinfected by soaking it in an antiseptic solution for at least thirty minutes, rinsing with water, and then thoroughly drying it once a week. If used between patients, it should be cleaned more frequently.

Keep these tips in mind when cleaning and disinfecting the humidifier bottle:

  • Empty the humidifier bottle and wash the exterior and interior with soap and water.
  • Give it a disinfectant, rinse, and then rinse it with hot water.
  • Check the manufacturer’s instructions to see if they have a specific way they require the product to be cleaned. This is important.
  • Don’t touch the inside of the lid or bottle once it has been disinfected. This way, you can avoid any contamination.
  • When it needs to be reused, refill the bottle with distilled water.

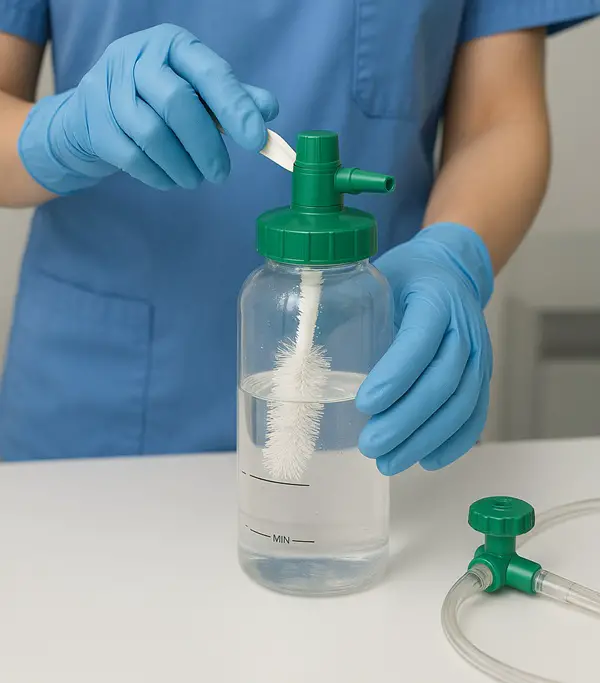

Cleaning Oxygen Humidifier Bottle

Replace Oxygen Tubing and Other Accessories When Needed

It is not always practical to disinfect certain accessories, such as oxygen tubing, nasal cannula, extension tubing, water trap, and so on.

So, you must replace them with new, sterile accessories and do so at the frequency that the manufacturer requires.

If the manufacturer doesn’t indicate a frequency with which you need to change it, do so every two weeks. You may need to do so even more often if you can see that it is visibly dirty or if it malfunctions in any way.

The most common malfunctions are caused by clogs of respiratory secretions, kinks, and bends in the tubing or moisturizers that are put in the nostrils.

If the water trap is placed right in line with the tubing or the oxygen, be sure you examine the trap every day to make sure no water has settled.

Empty it when the need arises. It is good to replace the tubing for the oxygen tank, including the water trap, once a month at the very least.

Avoiding Contamination of the Nasal Cannula

The cannula should be disposed of after use. This is true even when caring for the same patient. Be sure it doesn’t come into contact with any dirty surfaces.

The prongs tend to become contaminated when the patient doesn’t have the cannula protected between uses.

Pathogenic organisms that get on the prongs are then directly inhaled into the mucous membranes in the nasal passage. This could cause a respiratory infection.

Why Should Humidifier Bottles Be Replaced – When to Replace?

For patients undergoing oxygen therapy, timely replacement of the humidifier bottle is especially crucial.

Regular changes help maintain proper hygiene and reduce the risk of infections, ensuring safer and more effective therapy.

If you are using a disposable humidifier bottle, in most cases, replacement should be done every two weeks.

However, some bottles are designed for monthly replacement, so it is best to follow the manufacturer’s specific recommendations.

You should also replace the bottle immediately if you notice any damage, such as scaling, cracking, or other signs of wear and tear. Continuing to use a damaged bottle can compromise its function and pose health risks.

Troubleshooting Common Humidifier Problems with Your Oxygen Concentrator

Even with proper setup, your humidifier bottle may sometimes give you a bit of trouble.

The good news is that most issues are easy to fix once you know what to look for.

If you notice low humidity, make sure the bottle is connected correctly, the water level is filled up to the mark, and your flow rate is set as prescribed.

If you see water collecting in the tubing, try increasing the oxygen flow slightly or lowering the humidifier setting—this usually helps keep condensation under control.

When the humidifier doesn’t seem to be working at all, double-check the connections first. If everything looks fine but the problem continues, the bottle might need replacing, or you may need to reach out to the manufacturer for support.

An oxygen flow blockage often happens if the tubing is bent, kinked, or blocked, so keep the lines straight and make sure the bottle isn’t overfilled.

Finally, if you experience water leakage, tighten the cap and tubing connections or swap out any worn parts.

By staying alert to these simple issues and handling them right away, you can keep your oxygen therapy smooth, comfortable, and worry-free.

The Conclusion

Connecting a humidifier bottle to a home oxygen concentrator tank is a simple but important step for ensuring comfortable oxygen therapy.

By following the correct hookup instructions (securing the bottle tightly, checking for leaks, and keeping the equipment clean), you can maintain proper humidification and prevent complications.

However, do remember that with regular care and attention, your oxygen setup will provide safe, effective, and comfortable support. So, do not ignore that for safe and healthy results.
